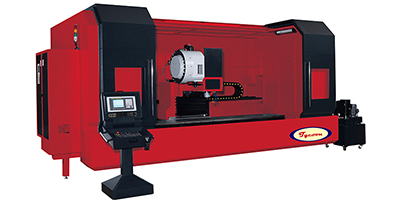

Milling Machine Vertical Turret Series Horizontal Series Vertical & Horizontal Series Bed Type Series Heavy Cutting Series CNC Column Machine TMA Series TMB Series TMC Series TMD Series TME Series Lathe High Effective Series High Precision Series Heavy Duty Lathe Drilling/Tapping Machine Radial Drilling Series Drilling Machine Series Tapping Machine Series Boring Machine Horiznotal Boring Series Grinding Machine Saddle Type Column Type Cantilever Type Double Column Type High Precision Surface Super Precision Surface Rotary Type Band Saw Vertical Type Horizontal Type Column Type EDM NC EDM Double Head EDM   TME Series BT# 40 Spindle   Specification Unit TME-25 TME-35 TME-45 TME-55 TME-65 Main Spindle Spindle speed rpm 8000/12000 Spindle taper   BT40 Capacity Longitudinal travel (X) mm 2500 3500 4500 5500 6500 Cross travel (Y) mm 610 Vertical travel (Z) mm 610 Cutting feed-rate (X,Y,Z) mm/min 8000 Rapid traverse (X,Y,Z) mm/min 18000/12000/12000 Motor Main spindle HP 15/20 Feed (X,Y,Z) HP 10/6/6 Positioning Accuracy X Rack mm ±0.04 Y/Z Ball Screw mm ±0.02 Repetition Posisioning Acuracy mm X:±0.01(±500) Y/Z: ±0.01 Tool Magazine Tool storing capacity tools 24 Method   ATC Max Tool Weight kg 8 BT# 40 Spindle     Specification Unit TME-70 TME-80 Main Spindle Spindle speed rpm 8000/12000 Spindle taper   BT40 Capacity Longitudinal travel (X) mm 7000 8000 Cross travel (Y) mm 610 Vertical travel (Z) mm 610 Cutting feed-rate (X,Y,Z) mm/min 8000 Rapid traverse (X,Y,Z) mm/min 18000/12000/12000 Motor Main spindle HP 15/20 Feed (X,Y,Z) HP 10/6/6 Positioning Accuracy X Rack mm ±0.04 Y/Z Ball Screw mm ±0.02 Repetition Posisioning Acuracy mm X:±0.01(±500) Y/Z: ±0.01 Tool Magazine Tool storing capacity tools 24 Method   ATC Max Tool Weight kg 8 Size & Weight Machine dimension (L×W×H) mm     Machine weight kg
